KP-100V150A-05CH Battery Charge and Discharge Tester
Advanced Energy-Feedback Solution for Battery Pack Testing
In the rapidly evolving world of battery technology, reliable testing equipment is essential for ensuring performance, safety, and longevity. The KP-100V150A-05CH Battery Charge and Discharge Tester stands out as a high-precision, multi-channel system designed for comprehensive battery pack evaluation. Ideal for lithium-ion, lead-acid, and other battery types, this tester supports cycle life testing, capacity assessment, and charge/discharge efficiency analysis.
Key Features
- Multi-Channel Design: 5 independent channels, each delivering up to 15KW of power (total 75KW)
- Wide Voltage and Current Range: Charge 0V-100V, discharge 6V-100V, current range -150A to 150A
- High Precision Measurements: ±0.05% FS accuracy with 1mV/1mA resolution
- Energy-Saving Feedback Efficiency: ≥90% efficiency at full load
- Auxiliary Temperature Monitoring: NTC sensors (-30°C to 120°C) with ±2°C accuracy
- Advanced Testing Modes: CC, CV, CR, CP, DCIR with up to 2000 process steps
- Comprehensive Data Recording: 10ms logging interval with Excel/CSV export
- Multiple Communication Interfaces: Ethernet, CAN, and 485 protocols with DBC import
- Safety and Protection: Over/under voltage, temperature, reverse connection protection
Technical Specifications
| Category |
Parameter |
Details |
| Environmental Conditions |
Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-10°C to 50°C |
| Operating Humidity |
≤70% RH (no condensation) |
| Storage Humidity |
≤95% RH (no condensation) |
| AC Input |
Voltage |
AC 380V ±10%, 50/60Hz ±5Hz |
| Power |
81.5KW |
| Power Factor |
≥99% (full load) |
| Noise Level |
≤80dB |
| Cooling |
Forced air cooling |
| Protection Level |
IP20 |
| DC Output |
Channels |
5 |
| Voltage Range |
Charge: 0V-100V; Discharge: 6V-100V |
| Voltage Accuracy |
±0.05% FS |
| Current Range |
-150A to 150A |
| Current Accuracy |
±0.05% FS |
| Response Time |
10ms (10% FS to 90% FS) |
| Auxiliary Channels |
Type |
NTC Temperature |
| Range |
-30°C to 120°C |
| Accuracy |
±2°C |
| Dimensions & Weight |
Size |
686mm (W) x 730mm (D) x 1960mm (H) |
| Weight |
≤350KG |
Benefits
- Efficiency and Cost Savings: Energy-feedback technology minimizes power waste
- Enhanced Safety: Emergency stop, grounding requirements, and multi-layer protections
- User-Friendly Interface: Tree-view data navigation and curve plotting
- Reliable Support: Modular design, lifetime software upgrades, and ≤1% failure rate

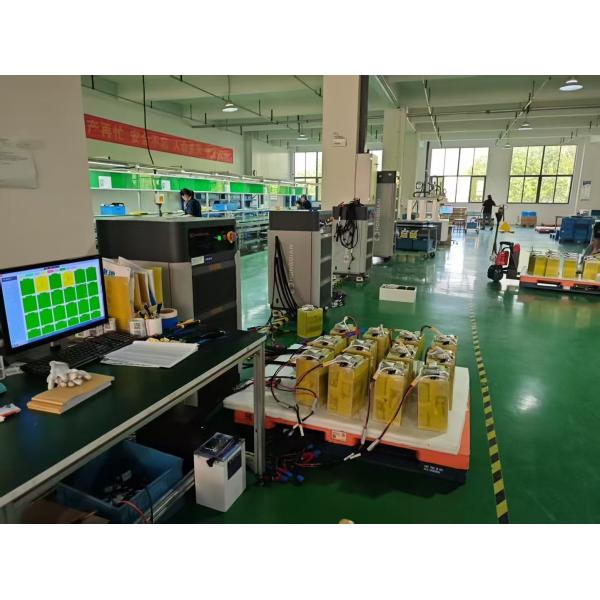

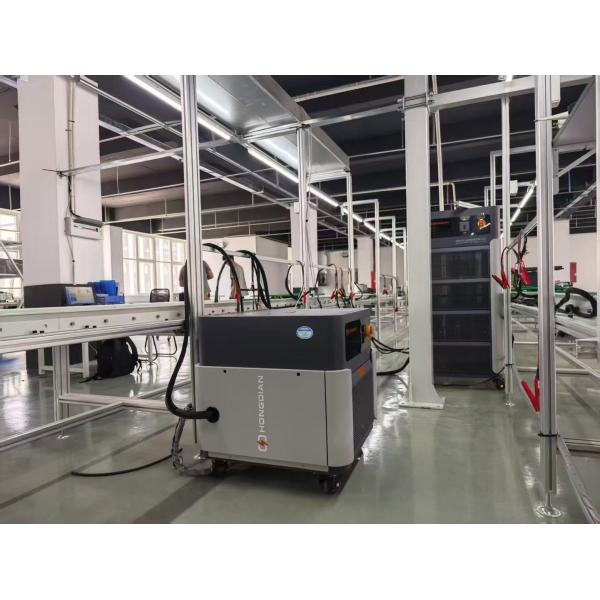

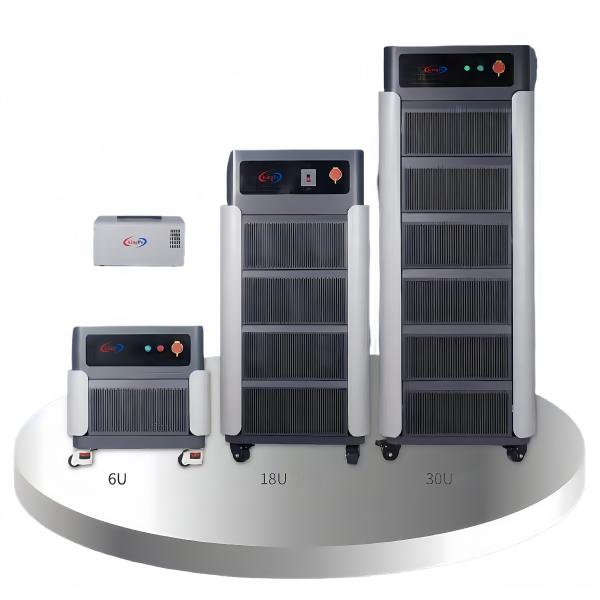

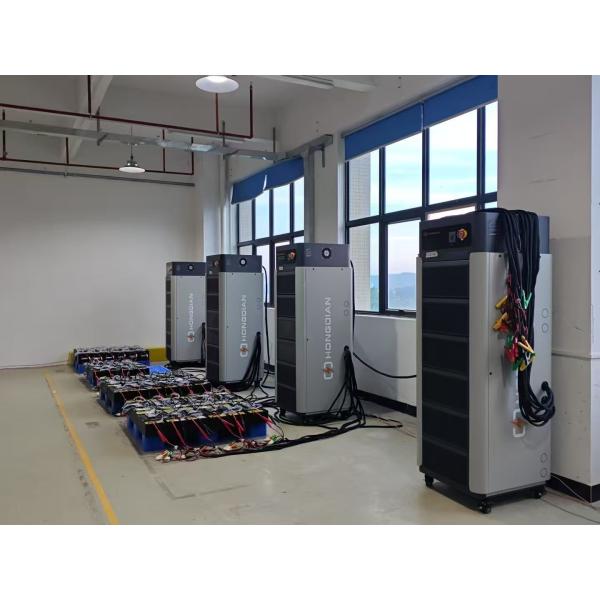

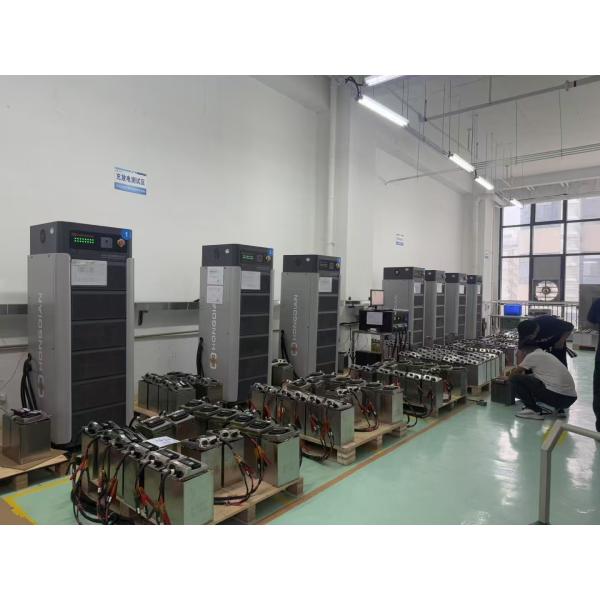

Product Gallery
Why Choose the KP-100V150A-05CH?
This battery charge discharge tester delivers unmatched value with its combination of precision, efficiency, and safety. An essential tool for optimizing battery performance in EV manufacturing, solar energy systems, and portable device production. Contact us today for pricing, demos, or custom configurations.
