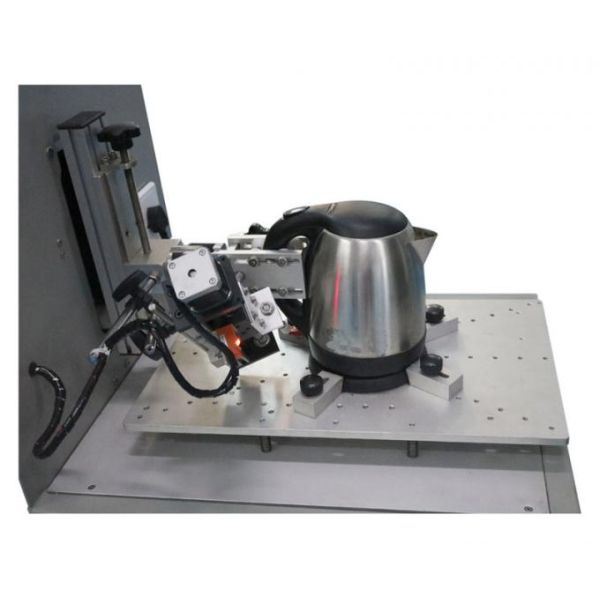

IEC 60335-2 Single Station Cordless Blender / Iron / Kettle Insert And Withdraw Endurance Tester
Description:
This is a multi function testing equipment can be used for verious cordless electrical appliance, include cordless blender, cordless iron, cord less kettle.
Special designed clamping device and structure can tight fix the sample and adjust the position to test different product.
PLC and touchscreen control system, make the test parameter setting very easy. All parameters can be set in touchscreen, multi parameters and functions for options. Press start, test carried out automatically. Manual operation can be done else.
Standard: IEC 60335-2-14 Clause 22.103, IEC 60335-2-3 Clause 22.105, IEC 60335-2-15 clause 22.103 and etc.
Application: Cordless electric kettles, cordless irons, cordless blenders, the contacts shall be constructed so that any electrical or mechanical failure that occurs during normal use shall not be dangerous and shall be verified by a plug-in test.
Test sample: Cordless electric kettles, cordless irons, cordless blenders
Feature:
-
This test device is controlled by PLC electrical system, adopts stepper motor to drive ball screw clockwise and counterclockwise rotating, then realize the reciprocating actions of the manipulator.
-
Full-touch mode of operation, parameters can be preset, including the number of test times, time, stroke , speed and etc., with the functions of manual adjustment and real-time location display, so that can be more precise and effective to adjust the compatibility between the sample and test device
-
Multifunction fixture, the height is adjustable so that can meet different kettle’s test.
-
The test device has built-in load, load test and non-load test can be automatically switchable, also can be processed independently.
-
Adopt floor structure, with casters can move freely, rigid chassis, good stability, spray seal plate, aluminum sandblasting fixtures, beautiful and practical.
Technical parameters:
|
No.
|
Item
|
Main Manipulator
|
Switch Opener
|
|
1
|
Control
|
Mitsubishi PLC
|
|
2
|
Operation
|
Touch screen
|
|
3
|
Displacement
|
0-100mm can be preset
|
0-25mm can be preset
|
|
4
|
Speed
|
0-100mm/s can be preset
|
0-20mm/s can be preset
|
|
5
|
Number of trials
|
0~999999, can be preset
|
|
6
|
Test time
|
0-999.9s can be preset
|
|
7
|
Fixture
|
Master manipulator fixture
|
|
8
|
Load current and voltage
|
0-250V, 0-15A adjustable
|
|
9
|
Load test and non-load test
|
Automatic switchable
|
|
10
|
Work station
|
Single
|
|
11
|
Power supply
|
220V, 50Hz
|
|
12
|
Dimensions and weight
|
83*50*104cm,150kg
|
