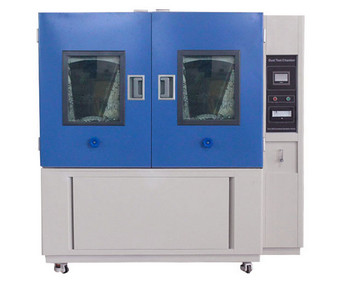

IEC 60529 IP5X6X Dust Test Chamber Environmental Tester
Product Description
Sand and dust test chambers are made for the simulation of dust and sand conditions.These test chambersare used for evaluating the effects of dust-filled environments in order to validate product seal integrity. Dust chambers are utlized in automotive, Electro-technical products, Materiel, Coatings, Solar energy, etc.
Main technical parameters
| Model | K-800 | KP-X1000 | KP-X1500 | KP-X2000 |
| Internal dimensions(mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
| Overall dimensions(mm) | 1040*1450*1960 | 1200*1450*1960 | 1250*1900*1960 | 1300*2400*1960 |
| Temperature range | Ambient to+50°C |
| Relative Humidity | <30%RH |
| Normal wire diameter | 50um |
| Normal width of a gap between wire | 75um |
| The talcum powder amount | 2kg~4kg/m3 |
| Fight time | 0~99h59m |
| Fan cycle time | 0~99h59m |
| Specimen power outlet | Dust-proof socket AC220V 16A |
| Controller | 5.7'' programmable color display touch scrren controller |
| Vaccum system | Equipped with a pressure gauga,air filter,pressure regulater,connecting tube |
| Circulating fan | Enclosed alloy low-noise motor,multi-vane centrifugal fan |
| Heating system | Independent Nichrome electronic heating system |
| Powersupply | 380V50HZ |
| Safety devices | Electric leakage, short circuit,over-temperature,motor overheating over current protection/Power failure memory function for controller |
| Standard | IEC 60529,ISO20653 |
Standard features
♦Temperature control and display unit
♦Humidity control and display unit
♦French TECUMSEH compressor cooling unit
♦Environment friendly refrigerant R404A & R23
♦Humidification system with external isolation, stainless steel surface evaporation humidifier
♦Heating element is Nichrome heater
♦Circulation with low noise centrifugal wind fan
♦Temperature sensor PT-100, Resolution: ± 0.001 ℃
♦Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
♦Build- in water reservoir
♦Programmable color LCD touch screen controller
♦Viewing window with interior lighting
♦Test hole with silicone screw plug.
♦2 pieces of adjustable and removable mesh shelving.
♦Bottom install 4 castors for ease moving, andwith brakes function
♦R-232 (R-485) interface, PC Link, communication with LAN network interface
♦Programs reach to 999 groups and 999 sections
♦Safety protection system
♦Interior material is high quality SUS304 stainless steel
♦Exterior material is steel plate with protective coating
♦Thermal insulation is Polyurethane foam
♦Automatic water supply, water purification system
♦Silicon seal for door
♦Can perform long time 85 °C/85 % RH tests
♦380V, 50Hz +/- 10%, three-phase-five-wire system
