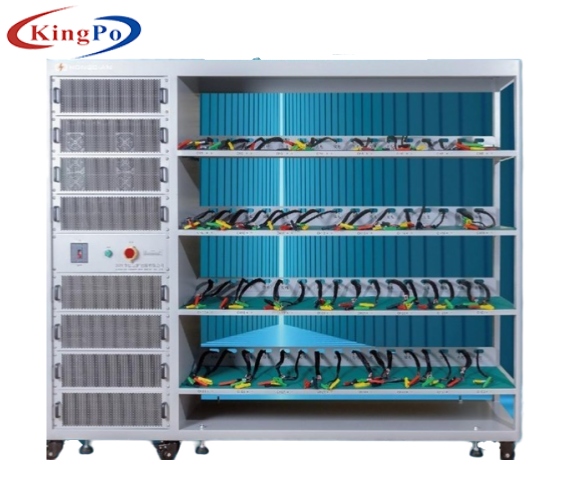

32CH Battery Charge Discharge Test System 30V-100V 28.8KW-96KW

Product Categories

KingPo Technology Development Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 32CH Battery Charge Discharge Test System 30V100V 288KW96KW
Brand: Kingpo
Price: 1 USD

Brand Name : Kingpo

Place of Origin : China

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Contact Now

32CH Integrated Cabinet Parameters

Voltage Series	Basic Model	Voltage/Current Accuracy	Minimum Charge/Discharge Current	Minimum Discharge Voltage	Response Time	Maximum Regenerative Efficiency	Power	Cabinet Dimensions
30V Series	HD-30V30A-32CH	0.05%FS	30mA	6V	10ms	90%	28.8KW	W:2130mm H:1790mm D:670mm
60V Series	HD-60V30A-32CH	0.05%FS	30mA	6V	10ms	90%	57.6KW
75V Series	HD-75V30A-32CH	0.05%FS	30mA	6V	10ms	90%	72KW
100V Series	HD-100V20A-32CH	0.05%FS	20mA	6V	10ms	90%	64KW
100V Series	HD-100V30A-32CH	0.05%FS	30mA	6V	10ms	90%	96KW

48CH Integrated Cabinet Parameters

Voltage Series	Basic Model	Voltage/Current Accuracy	Minimum Charge/Discharge Current	Minimum Discharge Voltage	Response Time	Maximum Regenerative Efficiency	Power	Cabinet Dimensions
30V Series	HD-30V10A-48CH	0.05%FS	10mA	6V	10ms	90%	14.4KW	W:2130mm H:1950mm D:670mm
	HD-30V20A-48CH	0.05%FS	20mA	6V	10ms	90%	28.8KW
	HD-30V30A-48CH	0.05%FS	30mA	6V	10ms	90%	43.2KW
60V Series	HD-60V10A-48CH	0.05%FS	10mA	6V	10ms	90%	28.8KW
	HD-60V20A-48CH	0.05%FS	20mA	6V	10ms	90%	57.6KW
	HD-60V30A-48CH	0.05%FS	30mA	6V	10ms	90%	86.4KW
75V Series	HD-75V10A-48CH	0.05%FS	10mA	6V	10ms	90%	36KW
75V Series	HD-75V20A-48CH	0.05%FS	20mA	6V	10ms	90%	72KW
100V Series	HD-100V10A-48CH	0.05%FS	10mA	6V	10ms	90%	48KW
100V Series	HD-100V20A-48CH	0.05%FS	20mA	6V	10ms	90%	96KW

32CH Battery Charge Discharge Test System 30V-100V 28.8KW-96KW
