IEC 60601-2-52 Medical Bed Tester -Impactor

Name: IEC 60601252 Medical Bed Tester Impactor
Brand: Kingpo
Price: 1 USD

Quality IEC 60601-2-52 Medical Bed Tester -Impactor for sale

Brand Name : Kingpo

Model Number : IEC 60601-2-52-Figure BB.2

Certification : ISO 17025

Place of Origin : china

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Supply Ability : 10 pcs per month

Delivery Time : 7 working days

Packaging Details : safety carton pack or plywood box

Material : steel

Standard : IEC 60601-2-52

Warranty : 1 Year

Contact Now

IEC 60601-2-52 Medical Bed Tester - Impactor

Product Description

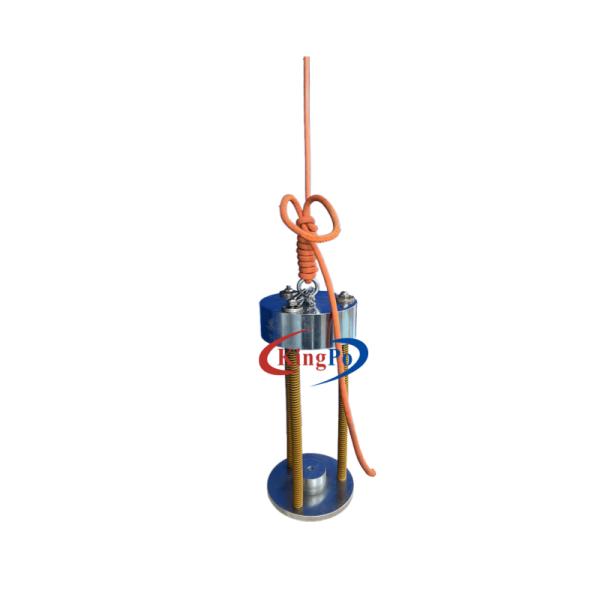

IEC 60601-2-52 - figure BB.2 Medical Bed Tester - Impactor

IEC 60601-2-52 Medical Bed Tester -Impactor

BB.2.2 The effect of impacts to the MATTRESS SUPPORT PLATFORM
The MEDICAL BED shall be able to withstand the effect of impacts to the MATTRESS SUPPORT PLATFORM being applied during NORMAL USE.

Compliance Test Procedure

Place the mattress, as specified by the MANUFACTURER, onto the MATTRESS SUPPORT PLATFORM
Position moving elements free of supporting elements with inclination less than 7° in relation to horizontal
For height-adjustable platforms, position in the middle of the adjustment range
From 180 mm above the mattress, drop the impactor (see Figure BB.2) onto the MEDICAL BED 20 times at each "B" location (Figure BB.1)
Impactor may be guided to ensure accurate impact locations
After testing, no elements shall become loose, fractured, or present any HAZARD

Technical Specifications

Parameter	Specification
Impactor Body Diameter	Approximately 200 mm
Total Mass	25 kg ± 0.1 kg
Body Mass (minus springs)	17 kg ± 0.1 kg
Spring System	Helical compression springs separating body from striking surface
Combined Spring Rate	6.9 N/mm ± 1 N/mm
Friction Resistance	0.25 N to 0.45 N
Compression at 1040N ±5N	Minimum 60 mm remaining compression distance
Striking Surface	Rigid circular object: 200 ±5 mm diameter with 300 mm radius convex spherical curvature and 12 mm front edge radius
