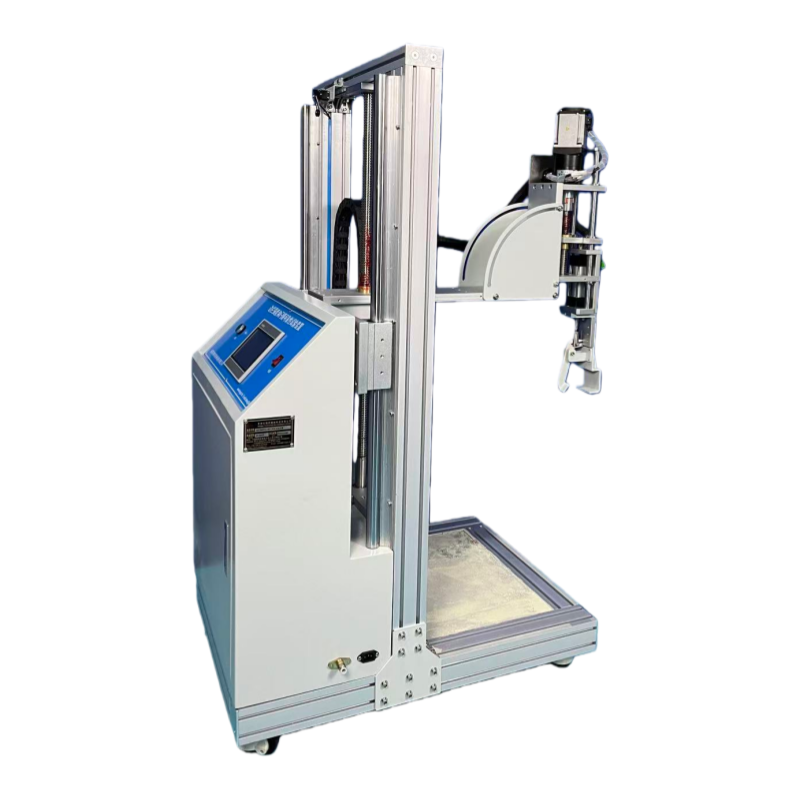

IEC 60335-2-36 Mechanical Durability Test Device For Commercial Induction Cookers
This specialized test equipment is designed to verify the mechanical durability and reliability of commercial induction cookers in accordance with IEC 60335-2-36 clause 18.101 requirements.
Product Overview
The equipment evaluates induction heating equipment structures to ensure they withstand 100,000 cycles of normal use without failure that could compromise safety requirements. The testing verifies that insulation remains intact, connections stay secure, and mechanical durability meets industry standards.
Testing Principle
A motor-driven mechanical arm moves pans or equivalent metal objects up and down across the induction cooker surface at controlled speeds. The induction cooker is cycled on and off to simulate 10,000 life test cycles, with adjustable load voltage to replicate real-world conditions.
Equipment Structure
- Electrical control cabinet with load voltage regulator
- Sturdy testing rack framework
- Precision mechanical arm assembly
Technical Specifications
| Input Power |
AC220V 50HZ, 5kW |
| Electrical Control |
PLC intelligent control system |
| Operation Interface |
7-inch color touch screen |
| Test Stations |
1 station |
| Sample Range |
1800*1800*1200mm maximum |
| Drive System |
Servo motor precision drive |
| Movement Pattern |
Vertical up and down motion |
| Movement Speed |
0-100mm/s, programmable via touch screen |
| Dwell Time |
0-999999s, programmable via touch screen |
| Test Cycles |
0-999999 times, programmable via touch screen |
| Test Frequency |
0-10 times/min, programmable (default: 6 times/min) |
| Load Voltage |
0-250V, adjustable |
| Test Application |
Mechanical durability testing for commercial induction cookers |
Physical Dimensions & Weight
Dimensions: Approximately 1200*9000*1600mm (W*D*H)
Weight: Approximately 150kg
Safety Protection Features
- Leakage protection system
- Overload and short circuit protection
- Motor overload and short circuit protection
